Upper sliding door

The industrial sliding doors produced by Animei are widely used in logistics, automobiles, exhibition halls, food and beverage, airports, electronic appliances, fire protection, shopping centers, hangars, docks, industry, agriculture, etc., with insulation, cold preservation, wind protection, Dustproof, soundproof, fireproof, anti-odor, lighting and other functions.

Features:

Scope of application: internal department / external department;

Maximum size: 11000*1000mm (width * height);

Opening speed: about 0.2m / s, off: 0.2m / s;

Power performance: standard motor;

Control system: standard configuration;

Sealing performance: EPDM rubber at the bottom and side;

Wind resistance coefficient: wind speed is 7 grades, 19-17 m/s, wind pressure is 17/m2 (optional with larger wind pressure);

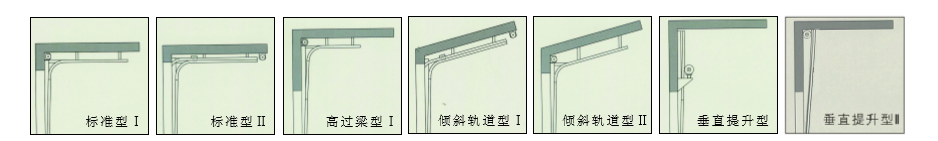

Track: 2 inches or 3 inches;

Door panel:

A. The thickness of the door panel is ≥40mm, 500mm high, and the inner and outer sides are treated with colored steel plates (≥0.35 thick), and the surface is treated with polyester coating. The thickness of the paint is 25-30 microns. The inner layer is a fluorine-free polyurethane foam material which is formed by chemical reaction under lamination, and is filled and filled without leaving voids. The inner and outer layers thus form a solid sandwich panel in the form of metal/foam material/metal. In order to improve the wind resistance of the door, the inside of the door panel is reinforced with steel plate ribs. The joints of the door panels are provided with sealing rubber to block the heat transfer and reduce heat loss;

B. The door body is composed of aluminum alloy and carbonated glass, and has good light transmittance in the middle of double-layer polycarbonate glass, and the aluminum alloy is anodized and polished (standard);

Hardware: All hardware are hot-dip galvanized, high strength, no rust and multi-layer coating, multiple color choices, torsion spring oil tempering, use cycle, more than times, hinges, solid shaft, Special hardware such as aluminum alloy drums and pulleys;

Balance system: torsion spring (calculated according to door weight, door opening height), diameter of the drive shaft;

Sealing performance: The tubular rubber strip at the bottom is cold-resistant, anti-freeze, moisture-proof and waterproof. It has good sealing ability and can adapt to slight uneven ground and isolate wind and rain.

Standard color: (light gray) RAL9003.

Safety: anti-torsion spring breaking device;

Anti-wire breaking device.

Optional equipment:

· Import "NICE" motors;

·Motor power failure is turned on: drawstring, chain;

·Anti-grip door panel;

·High carbon steel embedded parts (suitable for light steel keel, sandwich panels, etc.);

·The thickness of single-layer steel plate on the surface of the door: 0.4, 0.45, 0.5mm

·The color of the door panel can be customized;

·Bottom pneumatic protection;

·Bottom safety photoelectric protection;

·Windows;

· display;

Counter

· Opening method: geomagnetic, radar, remote control, rope switch, photoelectric, electronic label, door ban, interlock linkage, etc.;

· Anti-collision pile.
