Door seal

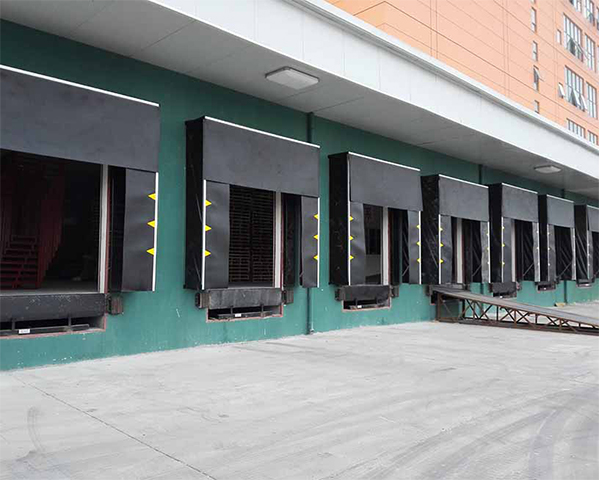

It has a good sealing effect on the space between the vehicle and the warehouse. The wear-resisting and tough fiber material of the door seal not only can close the periphery of the truck or the container, but also can withstand strong wind pressure, and can also load and unload the awning. Can withstand strong snow pressure. It is windproof, rainproof, dustproof and hinders the circulation of hot air outside the refrigerator and internal cold air.

Features:

Scope of application: The space between the vehicle and the warehouse plays a good sealing role.

Size: No size restrictions (size can be made according to customer's required size).

Material: The surface of the door seal is made of high quality neoprene rubber material or polyester fiber material with better wear resistance and flexibility. It should be no less than 30,000 times of friction; mechanical door seal frame is made of high quality and high strength aluminum alloy. The door seal is composed of a front frame, a rear frame and a connecting arm. The overall frame is made of an aluminum alloy profile, and the frame is covered with a strong polyester fiber material which is protected by ultraviolet rays. The top of the awning top frame is inclined to facilitate drainage at the top; the padded door seal is a closed-cell sponge with high elasticity, toughness and water resistance.

Fire performance: The surface material has the characteristics of flame retardant and self-extinguishing from fire.

The front and rear frames of the structure are connected by a hinged connecting arm, and the structure is soft and flexible, and the impact can be avoided. The mechanical door seal can realize the floor type and the thick type.

The top curtain is subjected to a large load capacity, and the top curtain can be cut as required, and the top curtain and the vehicle are perfectly overlapped.

Dimensions require that the width of the installed door seal be at least 220 mm wider than the width of the opening, and the height of the door seal can be applied from 2000 mm to 4100 mm;

Power: Pneumatic device (inflatable door seal)

Standard color: (black) RAL9011

safety:

·Yellow guide strip

·White guide strip

Optional equipment:

·Vehicle guide

·Vehicle anti-fall device

·Door seal anti-collision bracket

· Do not fully meet the needs of each customer.
