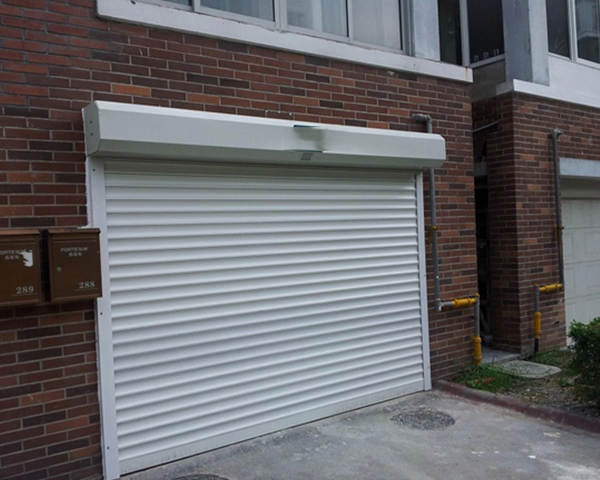

Shutter doors

The rolling door is connected in series with the multi-joint movable door. In the fixed slide, the upper and lower doors are rotated around the reel above the door. It is suitable for public places or houses such as commercial facades, garages, shopping malls, hospitals, factories and mines. In particular, the door opening is large, and it is convenient to install the ground door body.

Features:

Use environment: internal department / external department;

Maximum size: 12000*10000 (width*height);

Speed: On: Approx. 15mm/s, Off: Approx. 15mm/s

Control: three-point switch;

Door frame: aluminum alloy / high strength carbon steel;

Sealing performance: EPDM rubber at the bottom, sealing strip in the rail (aluminum alloy roll door);

Power performance: AC asynchronous motor, 220/380V, 50HZ, IP55, power 0.37 -1.5KW

Wind resistance coefficient: wind speed is 6 grades, 10.8 ~ 13m / s, wind pressure is 11m2 (optional with more wind pressure);

Door curtain:

A. High-strength hollow aluminum alloy curtains (50, 55, 77, 100, 120, etc.);

B. The high-strength color steel composite foam curtain is the main part of the shutter door and window. It determines the performance of the entire door and window. High-quality (steel) high-strength color steel composite foam curtains are used. The surface is treated with multi-layer baking varnish. The middle is filled with fluorocarbon-free polyurethane foam material. The high-strength color steel composite foam curtain has beautiful appearance and color. Soft, sturdy and durable. It is excellent in cold insulation, rainproof and soundproofing, and has a wide range of applications. It is one of the most popular decorations in the world. (55, 77, 100 models);

C. High-strength single-layer color steel panel (type 55, 77, 100, 120) and wind-resistant curtain;

Standard color: (light gray) RAL9003, (blue) RAL5002.

Security: Optional.

Optional equipment:

·Wireless remote control / wall button switch;

· Manual / electric roller blinds;

· Automatic rebound in case of obstacles;

· Wind-resistant device.
