Sliding door

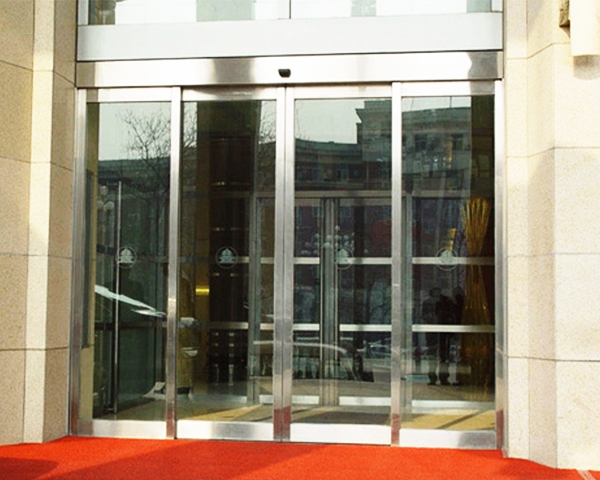

The automatic sliding door is a kind of intelligent door made by application control and advanced mechanical design. It is an automatic door that can meet the needs of various buildings and various levels. It has the advantages of safety, reliability and long life. It is widely used in hotels, restaurants, stations, office buildings, large supermarkets, major shopping malls and other places.

Features:

·Belt tensioner module: The belt is hung on the belt tensioner module, which is equipped with a mechanism to adjust the belt tension.

·Power beam: The power beam is made of aluminum (high carbon steel) and can be easily cut. Even in shops with various opening widths, it can be adjusted on site and installed in the best size.

· Ceiling module: Use this module to hang the door. This module is equipped with a door wheel to move on the aluminum rail of the engine compartment. It can carry a door of up to 150 kg weight. In addition, a height of ±3 mm can be adjusted.

· Buried module: The door is loaded on the rail; the top has a guide rail, and the module is equipped with a door wheel to move on the rail. Door that can carry up to 15,000 kg weight

? Controller module: This module receives the human body detection signal from the sensor, drives the motor to rotate, and controls the movement of the door. Thanks to the detachable remote control, the setting and adjustment of the movement during construction and maintenance are very simple. Can be applied to 220/380V power supply, no need to use a separate transformer.

· Belt module: Turns the rotation of the motor module into a reciprocating motion. Since it is connected to the hanger, it acts to transmit the force of opening and closing the door. With a toothed belt, the flexibility is small and the transmission efficiency is high, so there is almost no need to adjust it due to expansion and contraction.

Motor Module: A compact, powerful DC brushless motor. The gearbox is decelerated with a worm gear with high transmission efficiency and low noise, and then drives the belt module. Even if it is frequently opened and closed, it can be easily and trouble-free continuously operated due to the safety device.

·Sliding type, single single door, double door.

· Rack drive, 7-18 rail, can carry a large door with a weight of 15500 kg.

· Timing belt drive, sling-type rails, which can carry up to 500 kg of weight.

Standard color: (light gray) RAL9003;

Safety: Standard

Optional package:

· Door body anti-pinch protection device;

· Safety photoelectric protection device.
