Airtight door

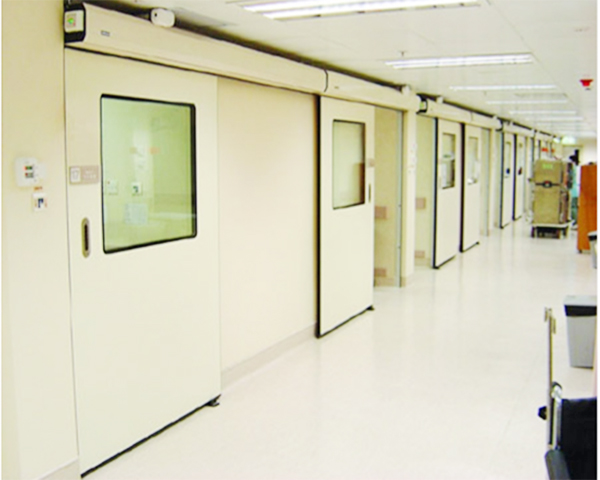

The airtight sliding door is a translational door that integrates airtightness, sound insulation, heat preservation, pressure resistance, dustproof, fireproof and radiation protection.

Features:

The power beam is made of aluminum alloy profile, featuring high-tech patent design. The groove corresponding to the position of the guide wheel and the guide rail and the groove at the bottom of the movable door cooperate with the small cylinder. When the movable door leaf is closed and moved to the groove, the weight of the door body is controlled by the control function. The rubber strip around the side of the door body and the flat rubber pad at the bottom are pressed to fit the door frame and the ground to ensure the sealing requirements of the airtight door, and the overall structure is reasonable and reliable. The life span is over 1 million times.

The door body adopts a foaming process, and the surface is decorated with a large flat matt stainless steel sheet or aluminum material, and a variety of spray colors can be selected. The power beam is embedded in the installation and maintains the same plane as the wall, which is more beautiful and full of overall. Sealing strips are placed around it to meet the hygiene requirements of the hospital.

The dedicated controller and the foot sensor switch have superior performance, and the medical staff only needs to extend the foot into the switch box, and the automatic door can be opened and closed. It can also be operated by a manual switch. The airtight performance of this product has been tested and complies with the national standard (GB13686-92), the first level standard.

Swing mode: single open / double open;

Door weight: below 70KG;

Door size: 2240MM;

Door width: 1550mm

Opening width: 1400mm

Installation method: surface;

Opening speed: 150-350mm

Closing speed: 100-350mm

Opening time: 1-9 seconds;

Manual opening force when power is off: 35N (3.8KGF);

Ambient temperature: 5 ° C -35 ° C;

Voltage: AC200-250V 50/601 + 2.

Standard color: (light gray) RAL9003.

Safety: · Safety photoelectric protection device.

Optional equipment:

·(Dark grey blue) RAL5014

·Can be customized according to customer needs;

·Windows.
